EM-18 RFID READER EXTENTION

Photo of author

By Jackson Taylor

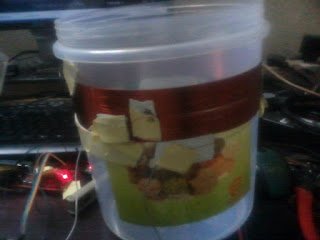

  • TWO COILS OF 400UH PARALLELED FOR ANTENNA.
  • INTERNAL ANTENNA DISCONNECTED.
  • APPROXIMATELY 70 TURNS IN EACH COIL
  • RFID READER MODULE IS EM -18
  • SUPPLY -5V
  • BOX SHAPE-CIRCLE ,DIAMETER -18CM (7 INCH)
