BT136 – TRIAC

Photo of author

By Jackson Taylor

Maximum ratings

  • V=Repetitive peak reverse voltage = 600V
  • I = RMS on-state current = 4A
  • Ipeak = non-repetitive peak on state current = 25A (20mS)
  • IGT = gate trigger current = 2.5 to 10mA
  • Tgt = gate-controlled turn-on time = 2uS
Maximum ratings diagram
Fig 1 – Pinout
Dimensions for PCB

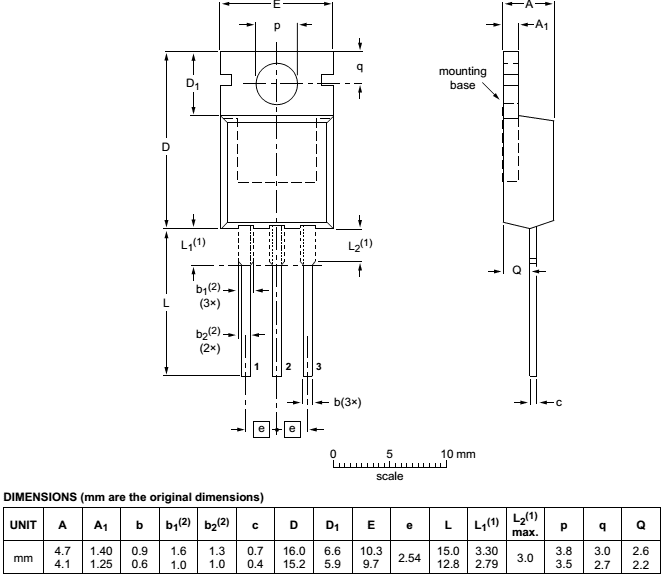

Fig 1 – dimensions for PCB
