MAKING AN INDUCTOR

Photo of author

By Jackson Taylor

MAKING AN INDUCTOR / INDUCTANCE MEASURENENT

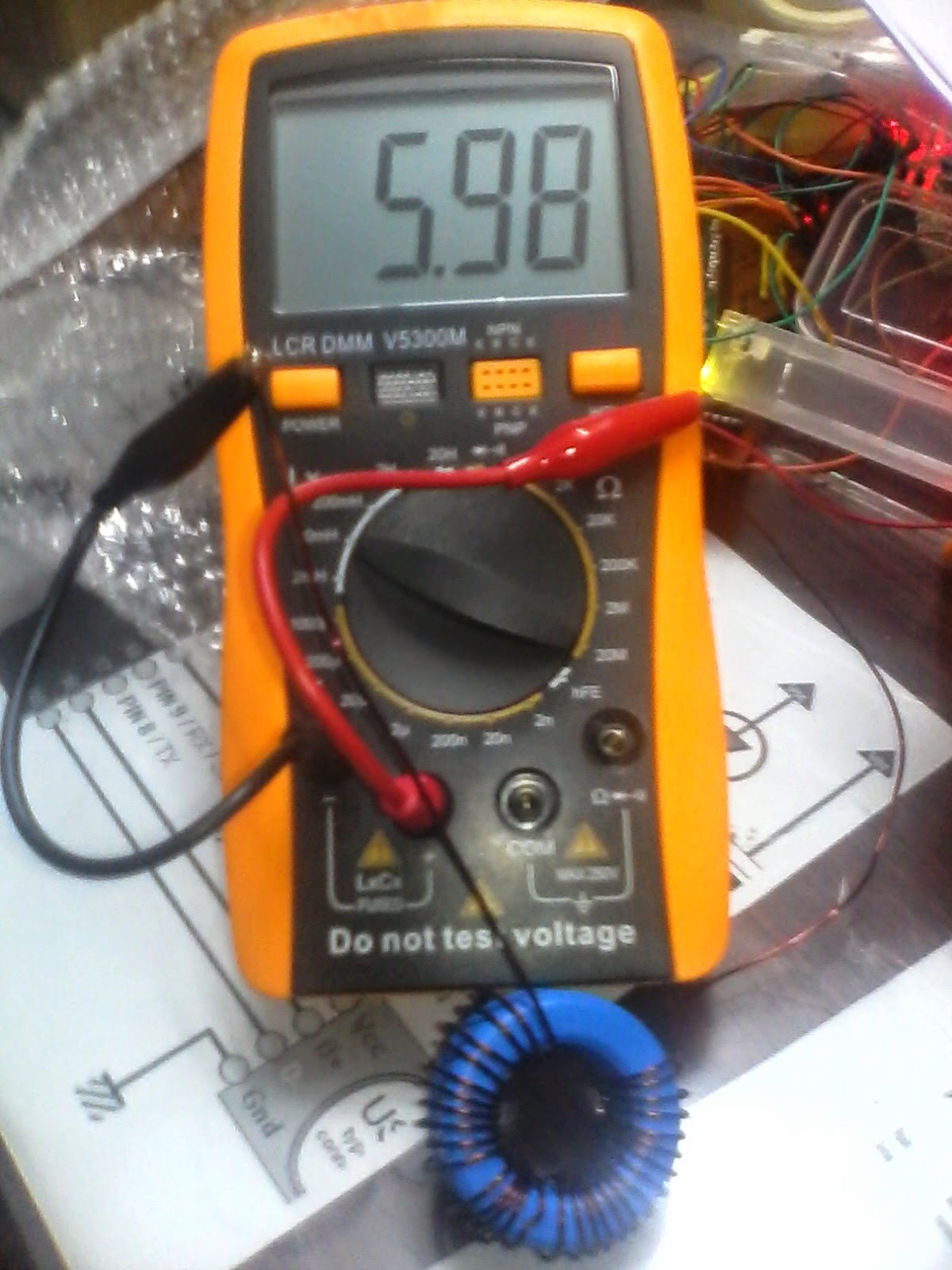

LCR METER

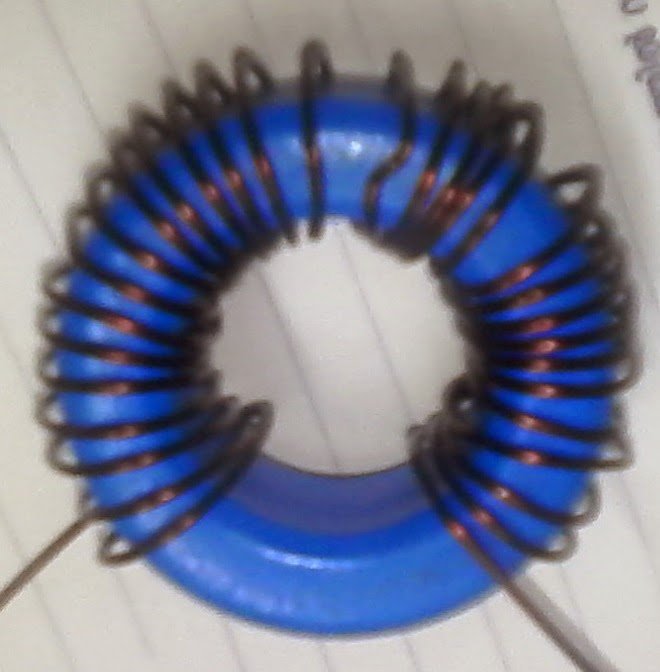

                                                                                                INDUCTOR

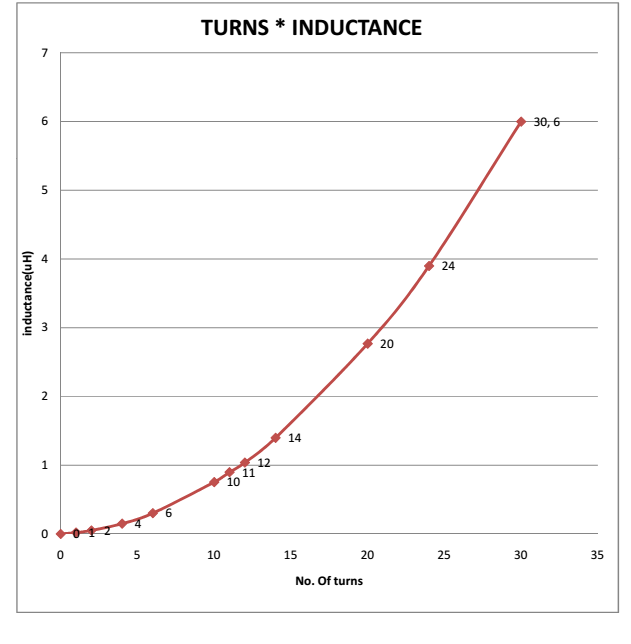

No. inductance(uH)
Of
turns
0 0.002
1 0.022 CORE NAME—-T30
2 0.053 WIRE GAUGE—-20FWG
4 0.152 DIAMETER OF CORE—-40CM
6 0.304 DIAMETER OF INNER HOLLOW SPACE—-2.4CM
10 0.756 WIDTH OF CORE—-1.7
11 0.9          COLOUR—-BLUE
12 1.04
14 1.4
20 2.77
24 3.9
30 6
