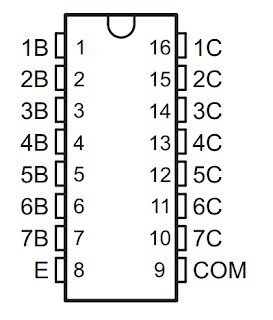

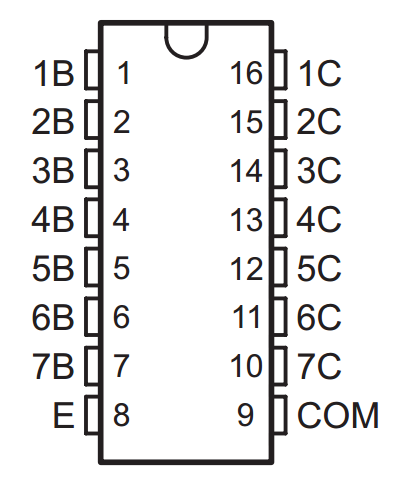

ULN2003

Photo of author

By Jackson Taylor

  • 500-mA-Rated Collector Current (Single Output)
  • High-Voltage Outputs: 50 V
  • Output Clamp Diodes
  • CMOS & TTL Compatible
  • 7 drivers
