In this work, wireless black box using accelerometer and GPS tracking system is developed for accidental monitoring. The system consists of cooperative components of an accelerometer, piezo sensor ,micro controller unit, GPS device and GSM module. In the event of accident, this wireless device will send mobile phone short massage indicating the position of vehicle by GPS system to family member, emergency medical service (EMS) and nearest hospital. The threshold algorithm and speed of motorcycle are used to determine fall or accident in real-time. The system is compact and easy to install under rider seat.

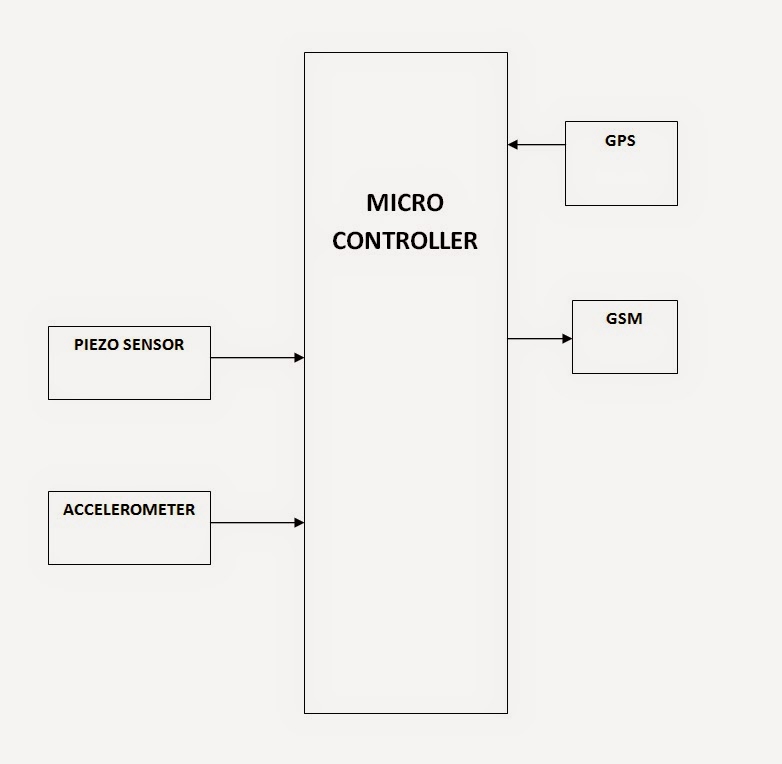

BLOCK DIAGRAM
CIRCUIT DIAGRAM
PROGRAM
int f=0;
void setup()
{
Serial.begin(9600);
pinMode(12,INPUT);
pinMode(13,INPUT);
pinMode(A5,INPUT);
delay(1000);
}
void loop()
{
int a=digitalRead(12);
int b=digitalRead(13);
int c=digitalRead(A5);
if((a || b || c)&& f==0)
{
message();f=1;
}
}
void message(void)
{
Serial.print(“AT+CMGF=1;”);//TEXT MODE
Serial.write(0xd);//ENTER
delay(1000);
Serial.print(“AT+CMGS=”);
Serial.write(0X22);
Serial.print(“9995305586”);//NUMBER
Serial.write(0X22);
Serial.write(0xd);//ENTER
delay(1000);
Serial.print(“ACCIDENT AT “);
for(int v=0;v<100;v++){Serial.write(Serial.read());}
Serial.write(0x1a);
}

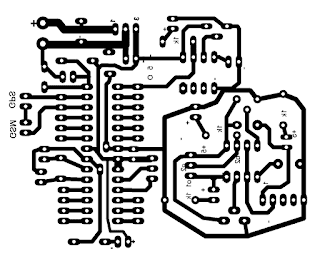

PCB LAYOUT
