- MICROCONTROLLER – AT89S51
- COMPILER – MIKROC
- SIMULATION – PROTEUS 8.1
- CRYSTAL – 11.0592MHz(use this crystal to get baud rate of 9600)
DOWNLOAD SIMULATION FILES

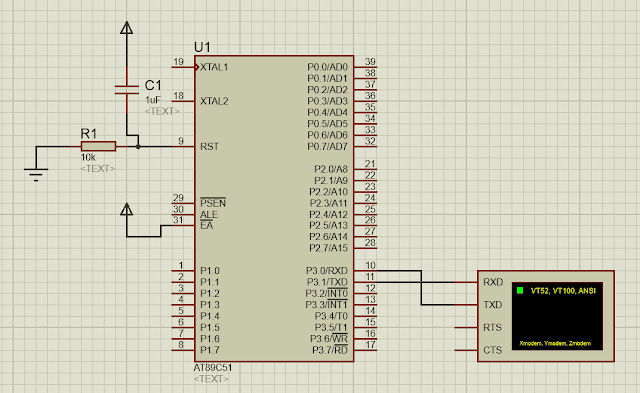

CIRCUIT

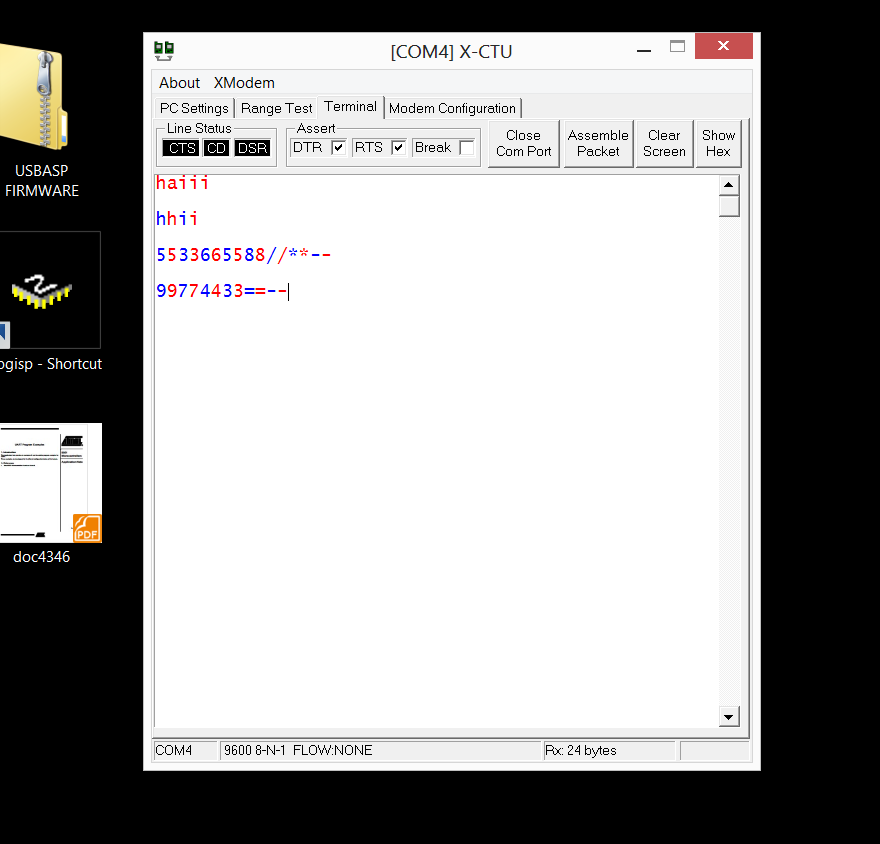

x-ctu screen shot
PROGRAM
//RX PIN 10 (P3_0)
//TX PIN 11 (P3_1)
char uart_rd;
void main() {
UART1_Init(9600); // Initialize UART module at 4800 bps
Delay_ms(1000); // Wait for UART module to stabilize
UART1_Write_Text(“haiii”);
while (1) { // Endless loop
if (UART1_Data_Ready()) { // If data is received,
uart_rd = UART1_Read(); // read the received data,
UART1_Write(uart_rd); // and send data via UART
}
}
}
