- MICROCONTROLLER – AT89S51
- COMPILER – MIKROC
- SIMULATION – PROTEUS 8.1
- CRYSTAL – 4MHz
DOWNLOAD SIMULATION FILES

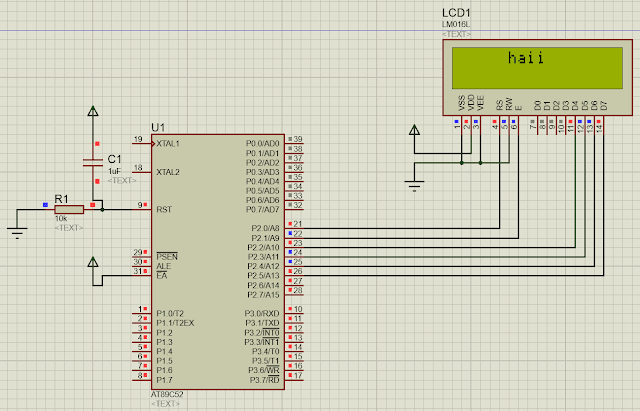

CIRCUIT
PROGRAM
sbit LCD_RS at P2_0_bit;
sbit LCD_EN at P2_1_bit;
sbit LCD_D4 at P2_2_bit;
sbit LCD_D5 at P2_3_bit;
sbit LCD_D6 at P2_4_bit;
sbit LCD_D7 at P2_5_bit;
// End Lcd module connections
void main()
{
Lcd_Init(); // Initialize Lcd
Lcd_Cmd(_LCD_CLEAR); // Clear display
Lcd_Cmd(_LCD_CURSOR_OFF); // Cursor off
Lcd_Out(1,6,”haii”); // Write text in first row
while(1) ;
}
