SIMULATION

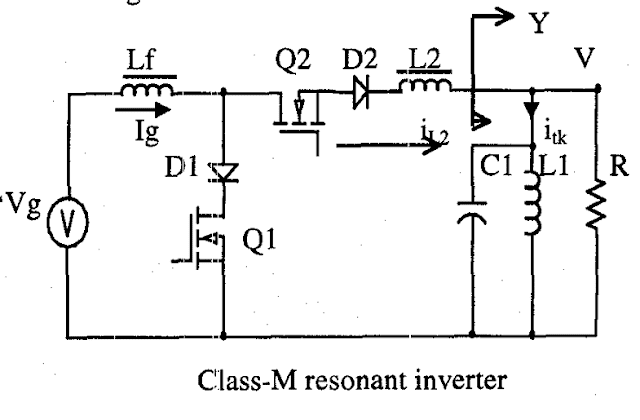

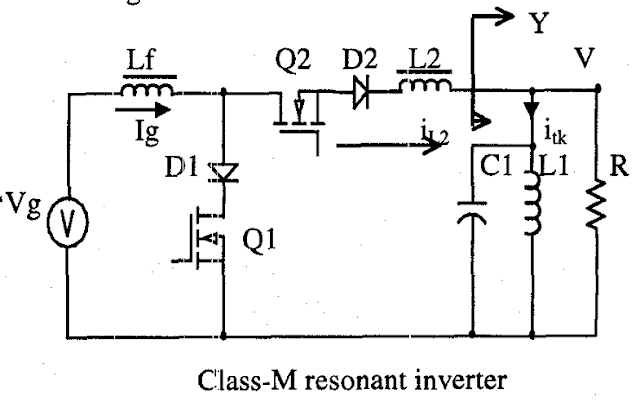

CIRCUIT
PROGRAM ( COMPILER MIKRO C)
//i have used crystal of 16 MHz
#define s1 LATE.F0
#define s2 LATE.F1
void main()
{
TRISE.F0=0; TRISE.F1=0;
while (1)
{
s2 =0; Delay_us(1);
s1 =1; Delay_us(9);
s1 =0;s2 =1; Delay_us(1);
s2 =1; Delay_us(5);
}}
OUTPUT WAVE FORMS

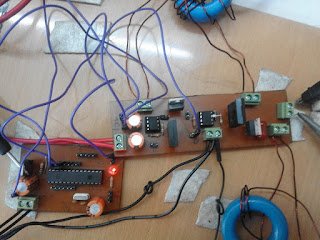

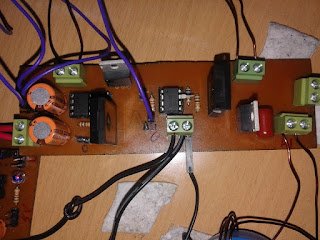

HARDWARE
