Measuring high voltages with an Arduino can feel tricky. I remember my first project and the shock of learning how to scale voltage. This guide shows you how to use a voltage sensor with your Arduino. You’ll read up on the basics, see practical wiring ideas, and check out real code you can try today.

What You’ll Learn

• How a voltage sensor works with Arduino
• Step-by-step setup and wiring
• Code examples for reading voltages
• Tips to boost measurement accuracy

Understanding Voltage Sensors for Arduino

What is a Voltage Sensor?

A voltage sensor scales down a high voltage so that an Arduino can read it safely. It uses a pair of resistors in a divider. For instance, resistors of 30K ohms and 7.5K ohms drop the input by a factor of five. This lets you measure voltages up to 25V while keeping the signal within the safe 0-5V range for the Arduino.

Quick Tip: A simple voltage divider protects your Arduino from high voltages.

Types of Voltage Sensors

There are different modules to choose from. One popular choice is the standard voltage sensor module. Another option is the INA219, which offers better accuracy and current readings. You can even build a DIY divider with custom resistor values.

Hardware Setup and Connection

Required Components

• An Arduino board (like UNO, Nano, or Mega)
• A voltage sensor module
• Jumper wires
• Breadboard for prototyping
• Optionally, an LCD display for live readings

Wiring Diagram and Connections

1. Connect the sensor’s ground (-) to the Arduino’s ground.
2. Connect the sensor’s signal (S) to the Arduino analog pin (A0).
3. The sensor’s positive input receives the voltage you want to measure.
4. Review polarity before applying power.

Note: Do not apply over 25V to a standard sensor module.

Safety Considerations

Double-check your connections before you power up. Avoid mistakes that may harm the Arduino. Keep your workspace clear and safe.

Basic Arduino Code for Voltage Measurement

The code below reads the sensor and converts it into a voltage. Use it as a base and tweak it for your needs. “`cpp

define ANALOG_IN_PIN A0

float adcVoltage = 0.0; float inputVoltage = 0.0; float R1 = 30000.0; float R2 = 7500.0; float refVoltage = 5.0; int adcValue = 0; void setup() { Serial.begin(9600); Serial.println(“Voltage Sensor Test”); } void loop() { adcValue = analogRead(ANALOG_IN_PIN); adcVoltage = (adcValue * refVoltage) / 1024.0; inputVoltage = adcVoltage / (R2 / (R1 + R2)); Serial.print(“Input Voltage = “); Serial.println(inputVoltage, 2); delay(500); } “`

FYI: Reading multiple samples and taking an average can smooth your values.

Advanced Voltage Sensing Techniques

Using an External Voltage Reference

An external reference, such as a 4.096V chip, can improve your reading accuracy. Change the code to use this fixed voltage instead of the fluctuating 5V from USB. “`cpp float refVoltage = 4.096; void setup() { analogReference(EXTERNAL); Serial.begin(9600); } “`

Improving Resolution with Oversampling

Take several readings and average them to get a clearer picture. For example, read 16 times and shift the result to boost your resolution. cpp long oversample = 0; int samples = 16; for (int i = 0; i < samples; i++) { oversample += analogRead(ANALOG_IN_PIN); delayMicroseconds(100); } adcValue = oversample >> 2;

Implementing Auto-Ranging

For projects with varying voltage levels, you can change measurement sensitivity. Use additional code logic to switch ranges when the reading falls below a threshold. cpp float measureVoltage() { int value = analogRead(ANALOG_IN_PIN); if (value < 100) { // Switch circuit to high sensitivity range digitalWrite(8, HIGH); delay(10); value = analogRead(ANALOG_IN_PIN); return (value * refVoltage / 1024.0) * 1.5; // Adjust factor for sensitivity } else { return (value * refVoltage / 1024.0) / (R2 / (R1 + R2)); } }

Adding Display and User Interface

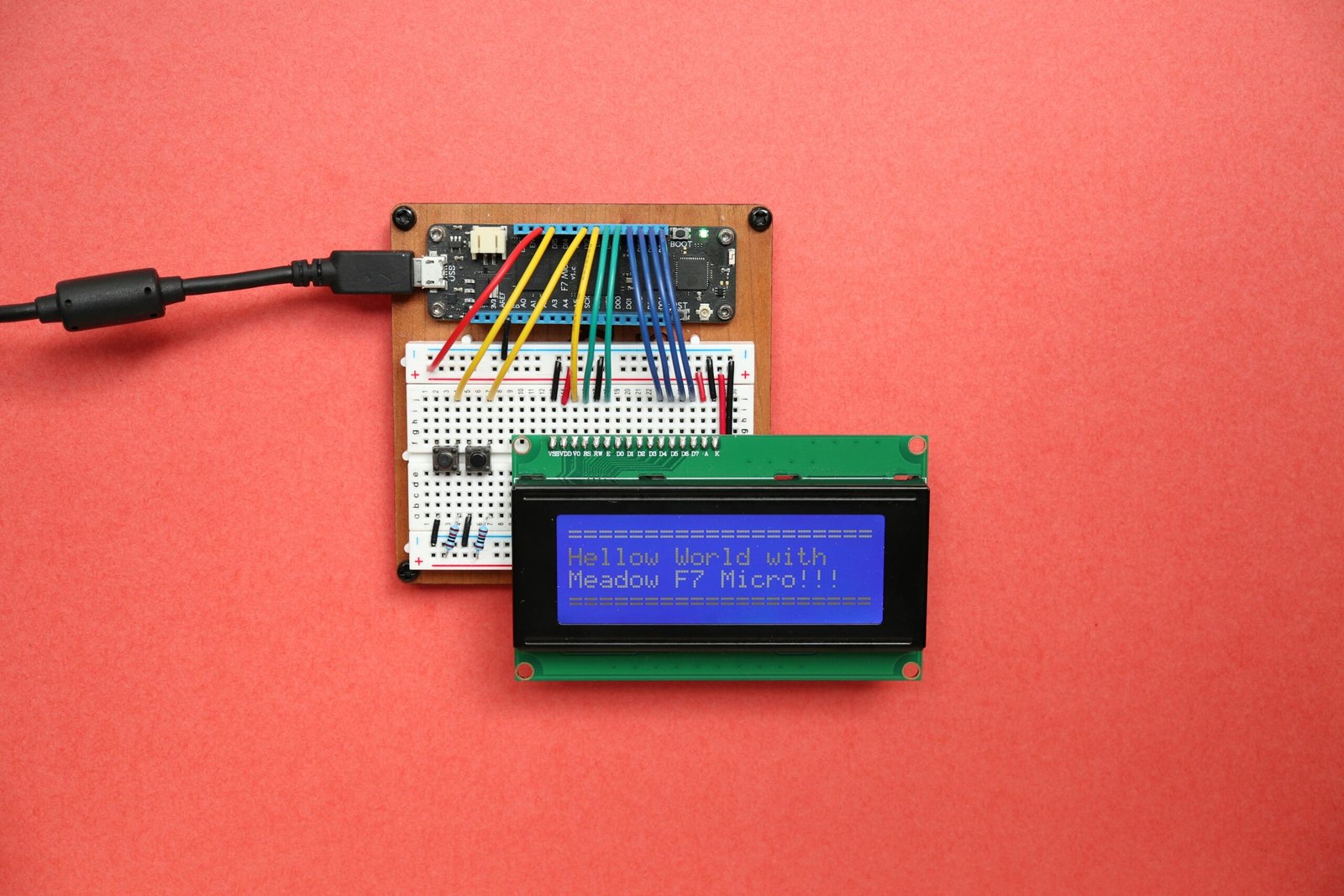

Displaying Voltage on an LCD

Displaying readings on an LCD makes your project hands-free. Use an I2C LCD for a quick setup. “`cpp

include

LiquidCrystal_I2C lcd(0x27, 16, 2); void setup() { lcd.init(); lcd.backlight(); Serial.begin(9600); } void loop() { float voltage = measureVoltage(); // Call your measurement function lcd.setCursor(0, 0); lcd.print(“Voltage: “); lcd.print(voltage); lcd.print(” V”); Serial.print(“Voltage: “); Serial.println(voltage); delay(500); } “`

Fun Fact: Watching an LCD update in real-time feels a bit like magic.

Frequently Asked Questions

What is a voltage sensor for Arduino?

It is a circuit that uses resistors to lower a high voltage to a safe level, which an Arduino can read using its analog pins.

How do I protect my Arduino during high voltage readings?

Use a voltage sensor or a divider circuit. Always double-check your wiring to maintain the voltage within 0-5V on the Arduino.

Can I use a voltage sensor for different types of voltages?

Yes, standard modules can handle up to 25V. Advanced modules like the INA219 add current measurement features.

How do I improve the accuracy of my voltage measurements?

Try averaging several readings. Use an external voltage reference if possible.

Is the wiring for all sensors the same?

Most sensors follow a similar wiring scheme. Check your module’s datasheet to confirm connections.

What common mistakes should I avoid?

Don’t mix up your ground connections and always verify the limits on your sensor module.

Key Takeaways

• A voltage sensor safely scales high voltages for Arduino reading.
• Use a proper wiring scheme to protect your board.
• Code examples show both basic and enhanced measurement methods.
• Experiment with external voltage references and oversampling for improved results.

I’m truly excited for you to try this project in your next build. Give it a go and share your results!
