ARDUINO AND SERVO MOTOR INTERFACING SIMULATION IN PROTEUS

• BOARD -ARDUINO UNO
• SIMULATION -PROTEUS 8.1

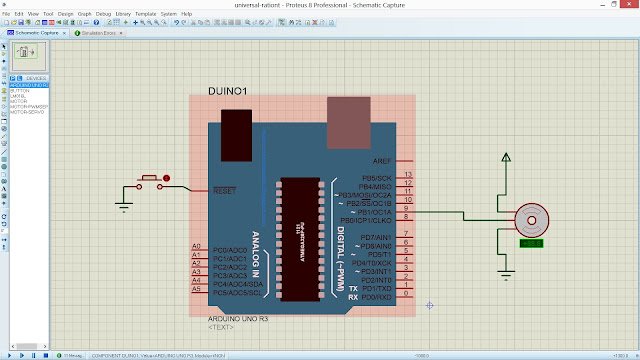

SIMULATION
DOWNLOAD SIMULATION FILES


PROGRAM
//SERVO CONNECTIONS –ORANGE-SIGNAL,RED-5V,BROWN-GND
#include <Servo.h>
 Servo myservo;  // create servo object to control a servo
void setup()
{
  myservo.attach(9);  // attaches the servo on pin 9 to the servo object
}
void loop()
{
myservo.write(0); // sets the servo position according to the scaled value
  delay(1000);
    myservo.write(90); //90 DEGREE
  delay(1000);
  myservo.write(180);
  delay(1000);
}
