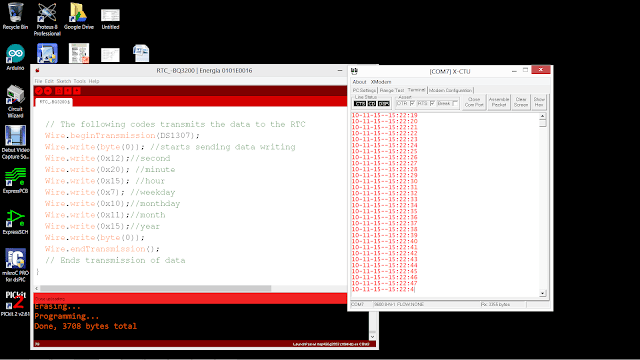

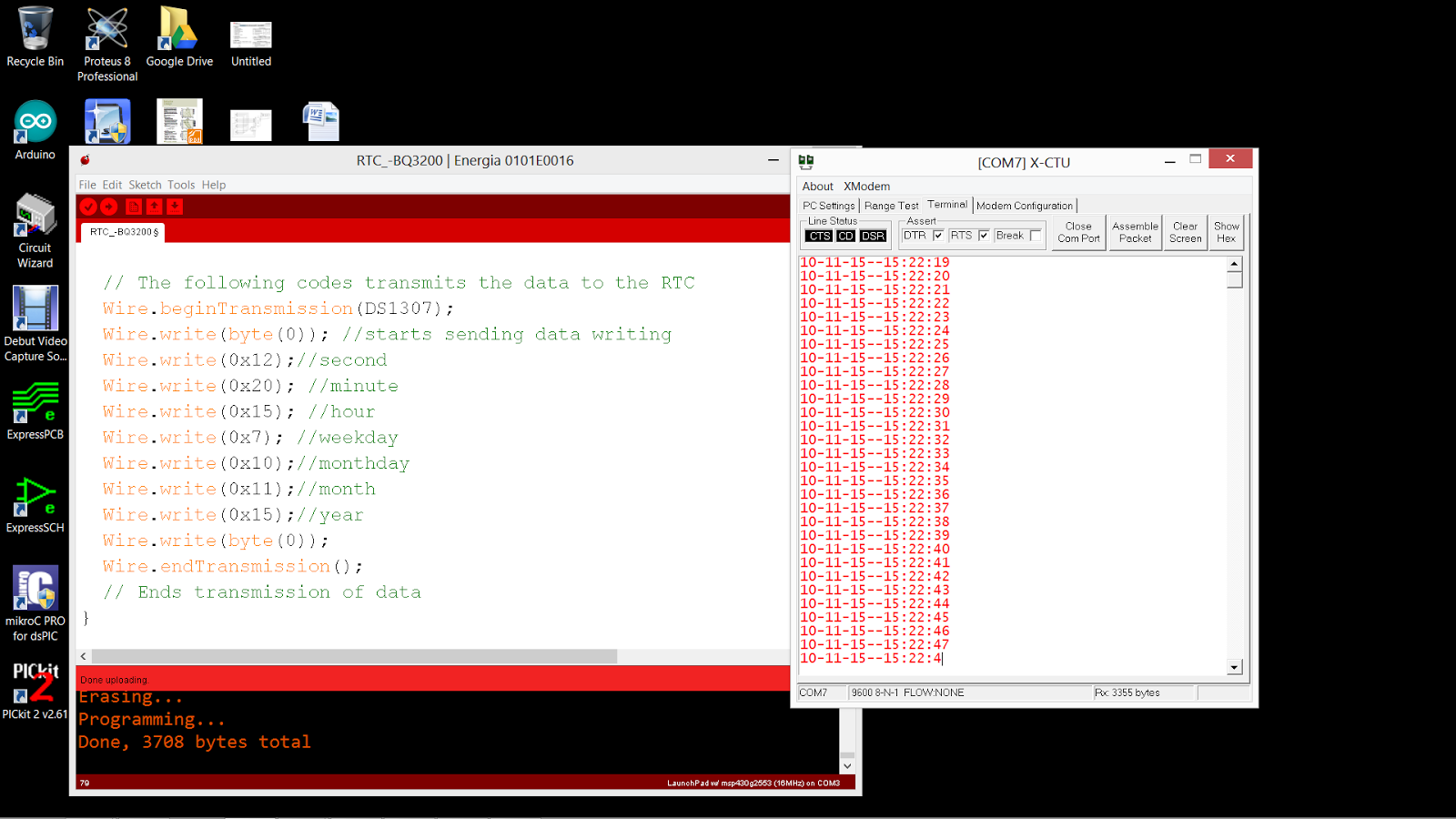

OUTPUT ON X-CTU SERIAL MONITOR

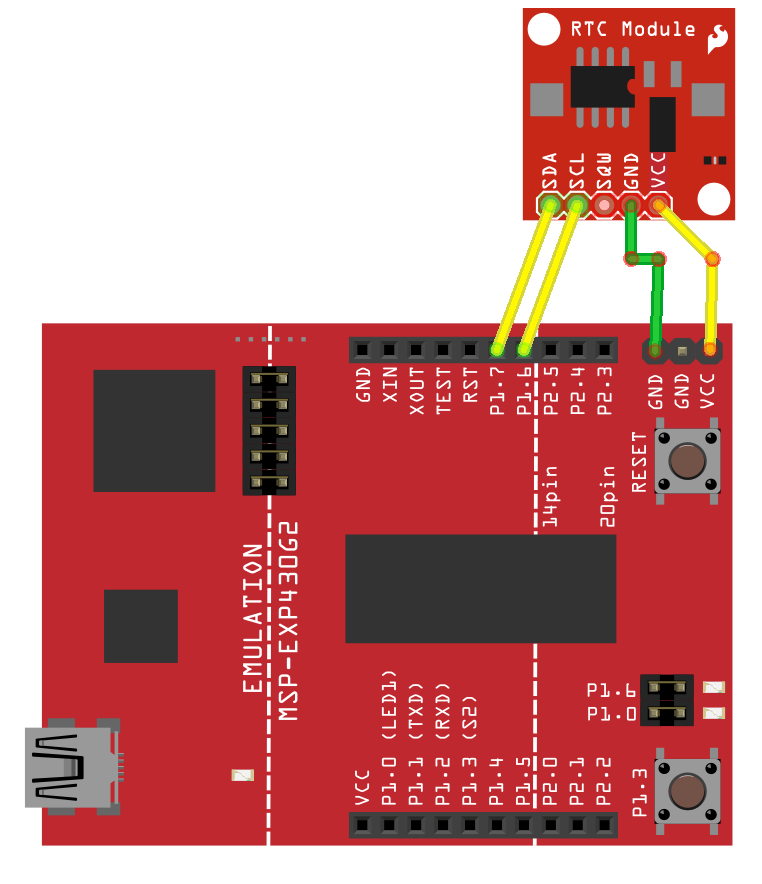

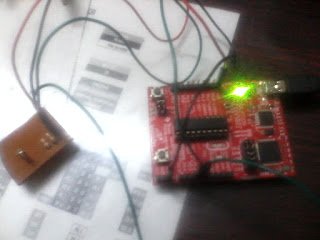

CIRCUIT
PROGRAM
//Here i am interfacing Real time clock with Arduino Uno and sends time to pc via serial port
//connect SDA—> P1_7, SCL—> P1_6
#include <Wire.h>
const int DS1307 = 0x68; // Address of DS1307 AND BQ32000 ARE SAME- see data sheets
byte second = 0;
byte minute = 0;
byte hour = 0;
byte weekday = 0;
byte monthday = 0;
byte month = 0;
byte year = 0;
void setup()
{
Wire.begin();
Serial.begin(9600);
delay(100);
setTime();
Serial.print(“HHH”);
}
void loop()
{
readTime();
delay(1000);
}
byte bcdToDec(byte val)
{
int msbdec=val/16*10; //gets decimel msb of BCD value(4 bits)
int lsbdec = val%16;//gets decimel lsb of BCD value(4 bits)
int total=msbdec+lsbdec;
return (total);
//return ((val/16*10) + (val%16));
}
void readTime()
{
Wire.beginTransmission(DS1307);
Wire.write(byte(0));
Wire.endTransmission();
Wire.requestFrom(DS1307, 7);
second = bcdToDec(Wire.read());
minute = bcdToDec(Wire.read());
hour = bcdToDec(Wire.read());
weekday = bcdToDec(Wire.read());
monthday = bcdToDec(Wire.read());
month = bcdToDec(Wire.read());
year = bcdToDec(Wire.read());
Serial.print(monthday);
Serial.write(‘-‘);
Serial.print(month );
Serial.write(‘-‘);
Serial.print(year);
Serial.write(‘-‘);
Serial.write(‘-‘);
Serial.print(hour);
Serial.write(‘:’);
Serial.print(minute);
Serial.write(‘:’);
Serial.print(second);
Serial.write(0xd);
}
void setTime() {
// The following codes transmits the data to the RTC
Wire.beginTransmission(DS1307);
Wire.write(byte(0)); //starts sending data writing
Wire.write(0x12);//second
Wire.write(0x20); //minute
Wire.write(0x15); //hour
Wire.write(0x7); //weekday
Wire.write(0x10);//monthday
Wire.write(0x11);//month
Wire.write(0x15);//year
Wire.write(byte(0));
Wire.endTransmission();
// Ends transmission of data
}
NOTE
THIS PROGRAM WORK WITH RTC IC DS1307 (SUPPLY MUST BE 1.25*BATTERY VOLTAGE)
