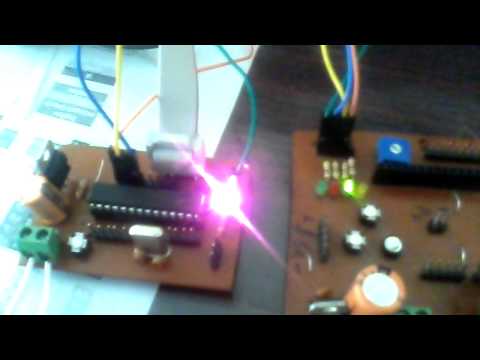

BLINKING USING DSPIC30F2010 USING MIKRO C

C LANGUAGE

LED BLINKING AT PIN E0

//i have used crystal of 16 MHz
void main()
{
    TRISE.F0=0;
    while (1)
    {
        PORTE.F0=1;
        Delay_ms(1000);
        PORTE.F0=0;
        Delay_ms(1000);
    }
}

LED BLINKING USING TIMER REGISTERS

//i have used crystal of 16 MHz
void main()
{
    PORTE = 0x0000;
    TRISE.F0 = 0;
    T1CON = 0; //Turn off Timer1 and clear settings
    TMR1 = 0; //Start Timer1 at zero
    PR1 = 10000; //Set period register value
    T1CON = 0x8030; //Turn on Timer1 with 1:256prescaler
    //T1CON = 0x8020; //Turn on Timer1 with 1:64prescaler
    // T1CON = 0x8000   //Turn on Timer1 with 1:1prescaler --ABOVE 500KHz
    //T1CON = 0x8010; //Turn on Timer1 with 1:8prescaler
    while (1)
    {
        while(!IFS0bits.T1IF); //Wait for timer period
        IFS0bits.T1IF = 0; //Clear timer flag for next period
        PORTE.F0 ^= 1; //Toggle LED
    }
}

PASCAL LANGUAGE

BLINKING PORTE

program BLINK
main:
    TRISE=0
    while TRUE
        LATE=0
        Delay_ms(500)
        LATE=0xff
        Delay_ms(500)
    wend
end.

BLINKING SINGLE PIN RE0 IN PORTE

program BLINK
main:
    TRISE.0=0
    while TRUE
        LATE.0=0
        Delay_ms(500)
        LATE.0=1
        Delay_ms(500)
    wend
end.

BLINKING SINGLE PIN RE0 IN PORTE (PIN DECLARED METHOD)

program BLINK
dim LEDRED as sbit at LATE1_bit
main:
    TRISE.1=0
    while TRUE
        LEDRED=0
        Delay_ms(500)
        LEDRED=1
        Delay_ms(500)
    wend
end.
