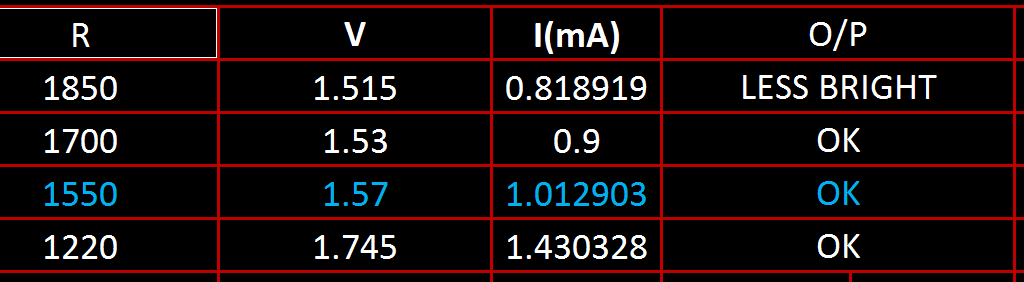

MOC3021 FORWARD CHARACTERSTICS

TEST CONDITIONS

  • INPUT VOLTAGE =5V
  • OUTPUT CONNECTED TO TRIAC BT136

SYMBOLS

  • R -SERIES RESISTOR IN INPUT SIDE
  • V – VOLTAGE ACROSS INPUT LED OF OPTO COUPLER
  • I – INPUT CURRENT BY LED
  • O/P – OUTPUT STATE OF LAMP LOAD OF 100W

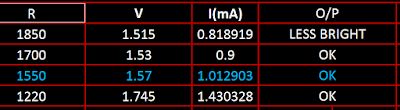

MOC3021 diagram
