Liquid Water Flow Sensor Switch Meter Counter Hall Sensor 0.3-6L/min

Photo of author

By Jackson Taylor


PRICE—235
QUANTITY REMAINING—3
Description:

  • Lead way:
  • External threads: 1/4″
  • temperature: -25~+80 centigrade
  • Allowing pressure: pressure 1.75Mpa
  • Operating humidity range: 35%~90%RH (no frost)
  • Use temperature: ≤ 80centigrade
  • Load capacity: ≤ 10 mA (DC 5V)
  • Working voltage range: DC 5~18 v
  • Maximum operating current: 15 mA (DC 5V)
  • The lowest rated working voltage: DC4.5 5V-24V
  • Quantity:1PC

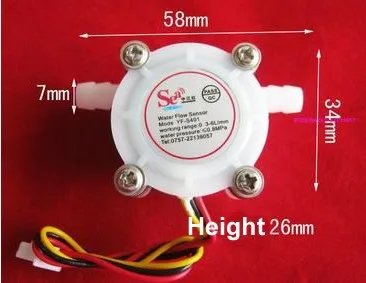

  • Size : 5.7cmX4cm/2.24”X1.57”
  • Color : white

CONNECTIONS

  • Red IN connect the anode
  • Yellow OUT signal output line
  • Black GND connect the cathode
