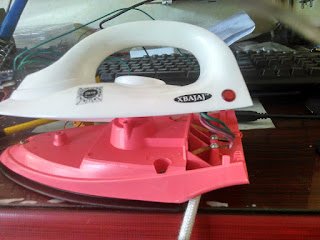

IN THIS PROJECT IRON BOX WILL AUTOMATICALLY TURNS OFF WHEN IT IS IN NOT USE (NO MOVEMENT ).
JUST SHAKE IT TO TURN ON.
- SENSOR -ADXL335

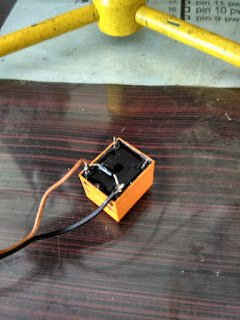

- RELAY -12V ,5A

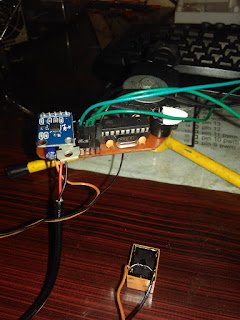

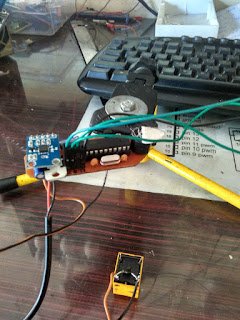

CIRCUIT
PROGRAM -ARDUINO
#define buzzer 10
#define relay 9
int x, y, z, xg, yg, zg, flag = 0, flag1 = 0, su = 1, i;
int x1, y1, z1;
int xt = 8, yt = 8, zt = 12;
int xd, yd, zd;
int time1;
void setup()
{
Serial.begin(9600);
init_outputs();
on_all();
}
void loop()
{
read_accelerometer();
if ( (x <= 420 && x >= 400) && (y <= 360 && y >=320) && (z <= 360 && z >= 310)) //hori
{
Serial.println(“vert”);
vertical ();
}
else if ( x <= 350 && x >= 300 && y <= 420 && y >= 380 && z >= 310 && z <= 350)
{
Serial.println(“hori”);
horizontal();
}
}
void vertical(void)
{
time1 = 0;
on_all();
x1 = x; y1 = y; z1 = z;
do
{
read_accelerometer();
xd = x – x1; yd = y – y1; zd = z – z1;
time1 = time1 + 1;
if (time1 > 12)//TIME TO TURN OFF IN VERTICAL POSITION =12 * 250mS =3 SECONDS
{
off_all(); time1 = 11;
}
} while ((!((xd < -xt) || (xd > xt) )) && (!((yd < -yt) || (yd > yt) )) && (!((zd < -zt) || (zd > zt) ))) ;
on_all();Serial.println(“brk1”);
Serial.print(“zt=”); Serial.println(zd);
}
void horizontal(void)
{ time1 = 0;
on_all();
x1 = x; y1 = y; z1 = z;
do
{
read_accelerometer();
xd = x – x1; yd = y – y1; zd = z – z1;
time1 = time1 + 1;
if (time1 > 12) //TIME TO TURN OFF IN HORIZONTAL POSITION =12 * 250mS =3 SECONDS
{
off_all(); time1 = 7;
}
} while ((!((xd < -xt) || (xd > xt) )) && (!((yd < -yt) || (yd > yt) )) && (!((zd < -zt) || (zd > zt) ))) ;
on_all();
Serial.println(“brk1”);
Serial.print(“zt=”); Serial.println(zd);
}
void read_accelerometer(void)
{
x = analogRead(A5);
y = analogRead(A4);
z = analogRead(A3);
Serial.print(x);
Serial.print(‘,’);
Serial.print(y);
Serial.print(‘,’);
Serial.println(z);
delay(250);
}
void off_all(void)
{
digitalWrite (buzzer, HIGH);
digitalWrite (relay, HIGH);
Serial.println(“——–off———“);
}
void on_all(void)
{ Serial.println(“——-on——–“);
digitalWrite(buzzer, LOW);
digitalWrite(relay, LOW);
}
void init_outputs(void)
{
pinMode(buzzer, OUTPUT);
pinMode(relay, OUTPUT);
}
