FIRE FIGHTING ROBOT

The project aims in designing a Robot that can be operated using Android mobile phone. The controlling of the Robot is done wirelessly through Android smart phone using the Bluetooth feature present in it. Here in the project the Android smart phone is used as a remote control for operating the Robot. . This isa Fire Fighting Robot which is used  for prevent  our  houses,  offices and shops  fromFire. . It will find the existence of fire using IR sensor and when the fire is detected by robot ,it will try to fight with fire using water pump.
Android is a software stack for mobile devices that includes an operating system, middleware and key applications. Android boasts a healthy array of connectivity options, including Wi-Fi, Bluetooth, and wireless data over a cellular connection (for example, GPRS, EDGE (Enhanced Data rates for GSM Evolution), and 3G). Android provides access to a wide range of useful libraries and tools that can be used to build rich applications. In addition, Android includes a full set of tools that have been built from the ground up alongside the platform providing developers with high productivity and deep insight into their applications.
Bluetooth is an open standard specification for a radio frequency (RF)-based, short-range connectivity technology that promises to change the face of computing and wireless communication. It is designed to be an inexpensive, wireless networking system for all classes of portable devices, such as laptops, PDAs (personal digital assistants), and mobile phones. It also will enable wireless connections for desktop computers, making connections between monitors, printers, keyboards, and the CPU cable-free. The controlling device of the whole system is a Microcontroller. Bluetooth module, DC motors are interfaced to the Microcontroller. The data received by the Bluetooth module from Android smart phone is fed as input to the controller. The controller acts accordingly on the DC motors of the Robot. The robot in the project can be made to move in all the four directions using the Android phone. The direction of the robot is indicated using LED indicators of the Robot system. In achieving the task the controller is loaded with a program written using Embedded ‘C’ language.

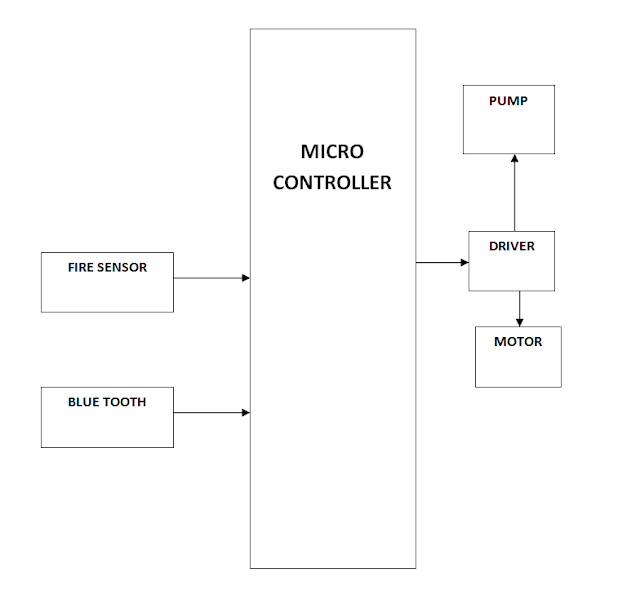

BLOCK DIAGRAM

CIRCUIT DIAGRAM


PROGRAM
void setup()
{
  pinMode(13,OUTPUT);
  Serial.begin(9600);
    pinMode(5, OUTPUT);
 pinMode(6, OUTPUT);
 pinMode(7, OUTPUT);
 pinMode(8, OUTPUT);
 }
void loop()
{
  if (Serial.available() > 0)
  {
  int b=analogRead(A5);
  int c=analogRead(A4);
  char a =Serial.read();
  if((b>995)||(c>995))
    {
      digitalWrite(13,HIGH);
      delay(2000);
      digitalWrite(13,LOW);
    }
     else if(a==’F’)
    {
     FRD();
    }
    else if(a==’B’)
    {
      BACK();
    }
    else if(a==’R’)
    {
      RIGHT();
    }
    else if(a==’L’)
    {
      LEFT();
    }
    else
    {
      STOP();
    }
  }
}
void FRD(void)
 {
 digitalWrite(5,HIGH); digitalWrite(6,LOW); digitalWrite(7,HIGH); digitalWrite(8,LOW);
 }
 void BACK(void)
{
 digitalWrite(5,LOW); digitalWrite(6,HIGH); digitalWrite(7,LOW); digitalWrite(8,HIGH);
}
void RIGHT(void)
{
 digitalWrite(5,HIGH); digitalWrite(6,LOW); digitalWrite(7,LOW); digitalWrite(8,LOW);
}
void LEFT(void)
{
 digitalWrite(5,LOW); digitalWrite(6,LOW); digitalWrite(7,HIGH); digitalWrite(8,LOW);
}
 void STOP(void)
{
 digitalWrite(5,LOW); digitalWrite(6,LOW); digitalWrite(7,LOW); digitalWrite(8,LOW);
}

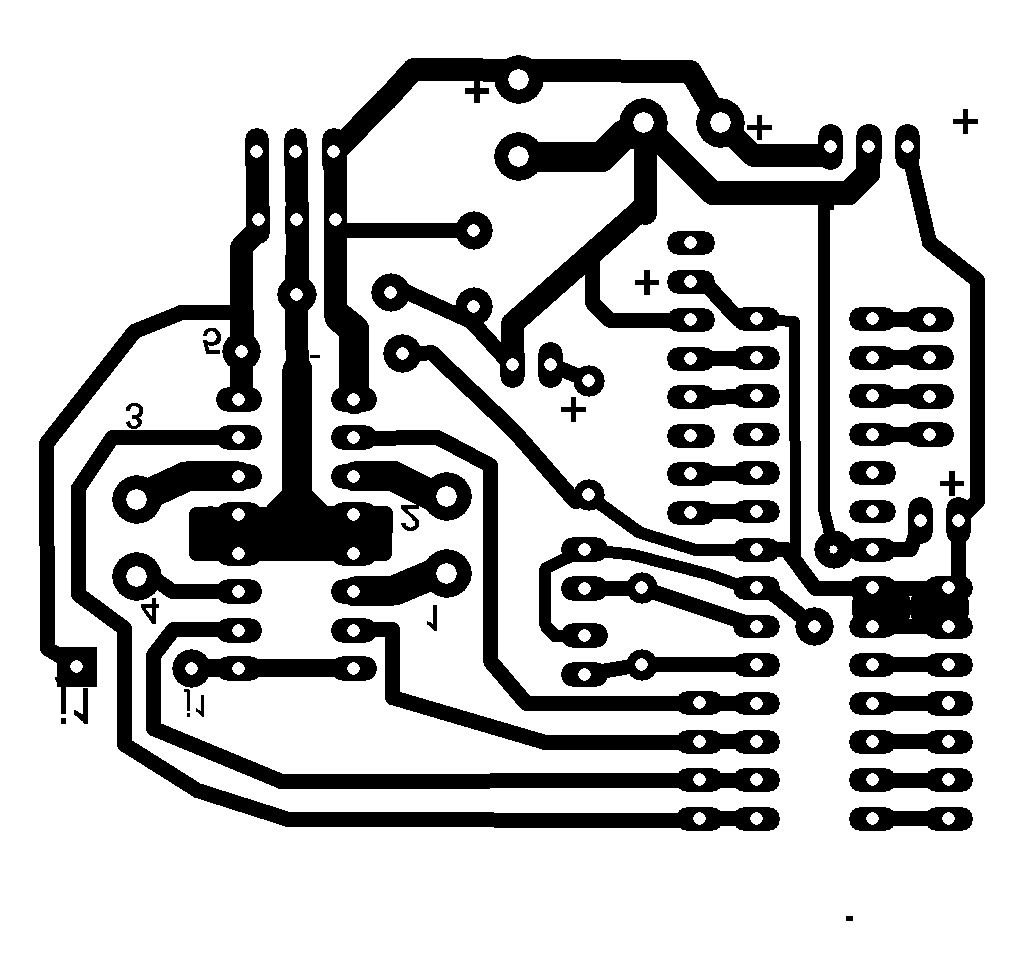

PCB LAYOUT
