Notes
- module used-R305
- At power on, it takes about 500ms for initialization. During this period, the Module can’t accept
- commands for upper computer.
- supply -DC 3.6V-6.0V
- here only reads the fingerprint
- please enroll using sys software
- it has 3 steps to read & check finger print
- step 1-collect finger image
- step 2-To generate character filefrom image
- step 3- search finger library for for previously stored finger print
- use softuart to see the output
PROGRAM
#include <LiquidCrystal.h>
#include <SoftwareSerial.h>
SoftwareSerial mySerial(10, 11); // RX, TX
LiquidCrystal lcd(3, 4, 5, 6, 7, 8);//LCD RS-3,En-4,D4-5,D5- 6,D6-7,D7-8
char a,e;
void setup()
{
mySerial.begin(57600);
mySerial.println("haii?"); //checks the softuart
Serial.begin(57600);
delay(500);
collectfingerimage();
generatecharacterfilefromimage();
searchfingerlibrary();
}
void loop()
{
}

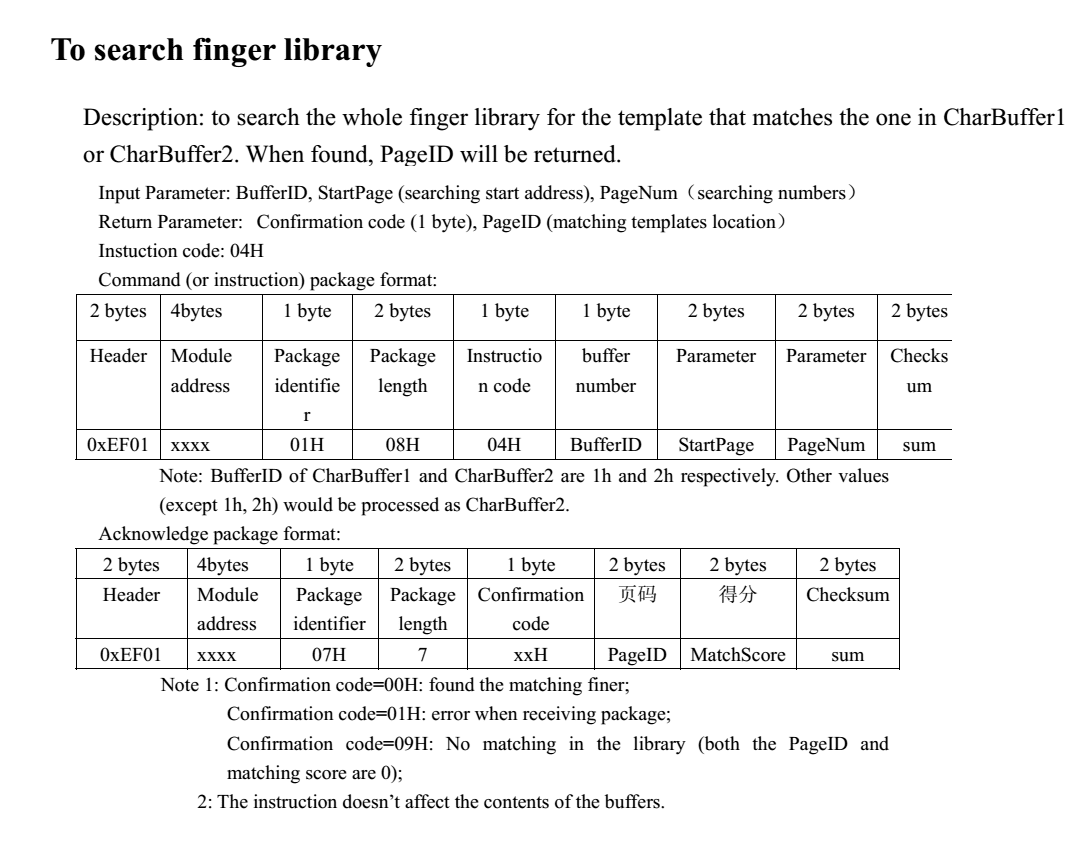

void searchfingerlibrary(void)
{
Serial.write(0XEF);//header --1st byte of header (total 2 bytes)
Serial.write(0X01);//header --2nd byte of header (total 2 bytes)
Serial.write(0XFF);//address--1st byte of address (total 4 bytes)
Serial.write(0XFF);//address--2
Serial.write(0XFF);//address--3
Serial.write(0XFF);//address--4
Serial.write(0X01);//Package identifier--01=Commands ,07=Acknowledgement (total 1 byte)
Serial.write(0);// --1st byte of Package length (total 2 byte)
Serial.write(8);// --2nd byte of Package length (total 2 byte)
Serial.write(4);////instruction code to search finger library (total 1 byte)
Serial.write(1);//buffer id number where the image is stored (total 1 byte)
Serial.write(0);//Start Page of searching(searching start address)(total 2 bytes)
Serial.write(0);//(total 2 bytes)
Serial.write(0);//searching numbers(total 2 bytes)
Serial.write(10);//searching numbers(total 2 bytes)
Serial.write(0);//check sum(total 2 bytes)
Serial.write(24);//check sum(total 2 bytes)
while(!(Serial.available()>0));
while(a != 7){ //wait until receiving Acknowledgement ..ie 0x7
a=Serial.read();
mySerial.write(a);
}
do { //wait until receiving package length ..ie 0x7
a=Serial.read();
mySerial.write(a);
}while(a != 7);
if(Serial.available()>0){ //reads the confirmation code
a=Serial.read();
mySerial.write(a);
}
if(a==0) mySerial.println("ok "); // Confirmation code=00H: found the matching finer;
else if(a==1) mySerial.println("error 1 "); //Confirmation code=01H: error when receiving package;
else if(a==9) mySerial.println("no match "); //Confirmation code=09H: No matching in the library (both the PageID and
// matching score are 0);
else { mySerial.println("error 0 ");}
if(Serial.available()>0){e=Serial.read();} // avoides the 1st byte of matching templates location
if(Serial.available()>0){ // reads the 2nd byte of matching templates location
a=Serial.read(); }
mySerial.println("font-size: large;"> if(a==0) mySerial.println("one");
else if(a==1) mySerial.println("two");
else mySerial.println("error");
mySerial.write(a);
if(Serial.available()>0){a=Serial.read(); mySerial.write(a); } // avoides MatchScore (total 2 bytes)
if(Serial.available()>0){a=Serial.read(); mySerial.write(a); } // avoides MatchScore (total 2 bytes)
if(Serial.available()>0){a=Serial.read(); mySerial.write(a); } //avoides checksum
if(Serial.available()>0){a=Serial.read(); mySerial.write(a); } //avoides checksum
}
}

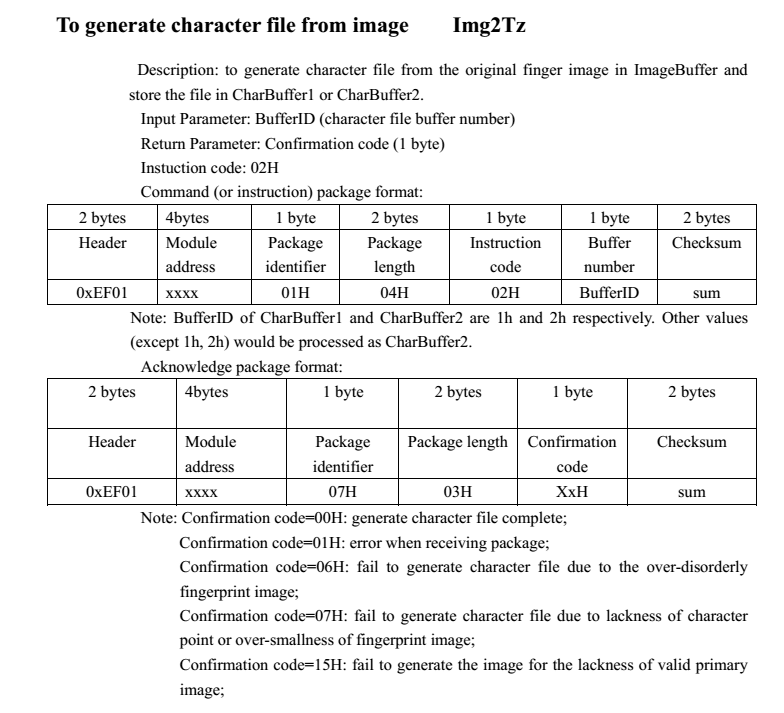

void generatecharacterfilefromimage(void)
{
do{
// delay(500);
Serial.write(0XEF);//header --1st byte of header (total 2 bytes)
Serial.write(0X01);//header --2nd byte of header (total 2 bytes)
Serial.write(0XFF);//address--1st byte of address (total 4 bytes)
Serial.write(0XFF);//address--2
Serial.write(0XFF);//address--3
Serial.write(0XFF);//address--4
Serial.write(0X01);//Package identifier--01=Commands ,07=Acknowledgement (total 1 byte)
Serial.write(0X00);// --1st byte of Package length (total 2 byte)
Serial.write(0X04);//Package length
Serial.write(0X02);//instruction code to generate character file from image
Serial.write(0X01);//BufferID 1 (total 1 byte)(to generate character file fromthe original finger image in ImageBuffer and
//store the file in CharBuffer1 or CharBuffer2.
//BufferID of CharBuffer1 and CharBuffer2 are 1h and 2h respectively
Serial.write(0X00);//check sum(total 2 bytes)
Serial.write(0X08);//check sum(total 2 bytes)
while(!(Serial.available()>0));//waiting for reply
while(a != 3){ //wait until receiving package length ..ie 0x3
a=Serial.read();
mySerial.write(a);
};
if(Serial.available()>0){ //reads the confirmation code
a=Serial.read();
mySerial.write(a);
}
if(a==0) mySerial.println("ok "); //Confirmation code=00H: generate character file complete;
else if(a==1) mySerial.println("error 1 "); //Confirmation code=01H: error when receiving package;
else if(a==6) mySerial.println("er 2"); //Confirmation code=06H: fail to generate character file due to the over-disorderly
//fingerprint image;
else if(a==7) mySerial.println("error 3 "); //Confirmation code=07H: fail to generate character file due to lackness of character
//point or over-smallness of fingerprint image;
else if(a==0x15) mySerial.println("error 4 "); //Confirmation code=15H: fail to generate the image
// for the lackness of valid primary image;
else { mySerial.println("error 5 ");}
e=Serial.read(); //avoides checksum
e=Serial.read(); //avoides checksum
}while(a!=0); //waits until the generation character file is completed;
delay(1000);
}

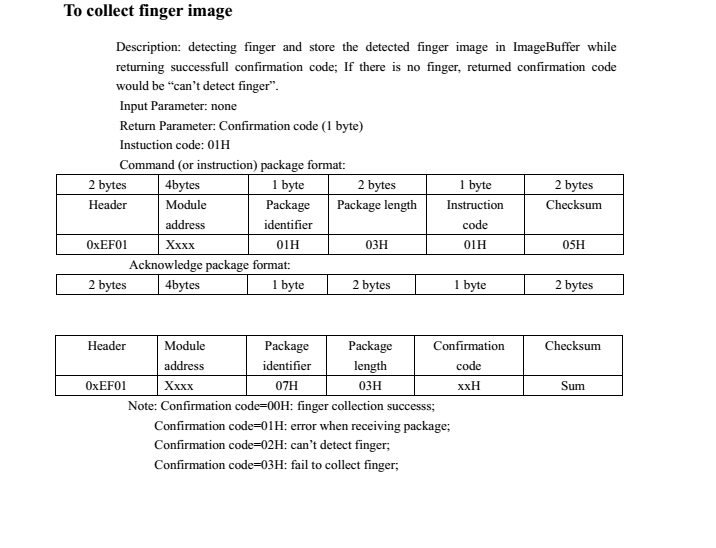

void collectfingerimage(void) //page number 12 in manual of r305
{
do{
Serial.write(0XEF);//header --1st byte of header (total 2 bytes)
Serial.write(0X01);//header --2nd byte of header (total 2 bytes)
Serial.write(0XFF);//address--1st byte of address (total 4 bytes)
Serial.write(0XFF);//address--2
Serial.write(0XFF);//address--3
Serial.write(0XFF);//address--4
Serial.write(0X01);//Package identifier--01=Commands ,07=Acknowledgement (total 1 byte)
Serial.write(0X00);// --1st byte of Package length (total 2 byte)
Serial.write(0X03);//Package length
Serial.write(0X01);//instruction code to collect image
Serial.write(0X00);//check sum(total 2 bytes)
Serial.write(0X05);//check sum(total 2 bytes)
//delay(500);
while(!(Serial.available()>0));//waiting for reply
while(a != 3){ //wait until receiving package length ..ie 0x3
a=Serial.read();
mySerial.write(a);
}
if(Serial.available()>0){ //reads the confirmation code
a=Serial.read();
mySerial.write(a);
}
if(a==0) mySerial.println("ok "); //Confirmation code=00H: finger collection successs;
else if(a==1) mySerial.println("error 4 "); //Confirmation code=01H: error when receiving packag
else if(a==2) mySerial.println("no finger");//Confirmation code=02H: can’t detect finger;
else if(a==3) mySerial.println("error 2 "); //Confirmation code=03H: fail to collect finger;
else { mySerial.println("error 0 ");}
e=Serial.read(); //avoides checksum
e=Serial.read();//avoides checksum
}while(a!=0);//waits until to get any finger
}
